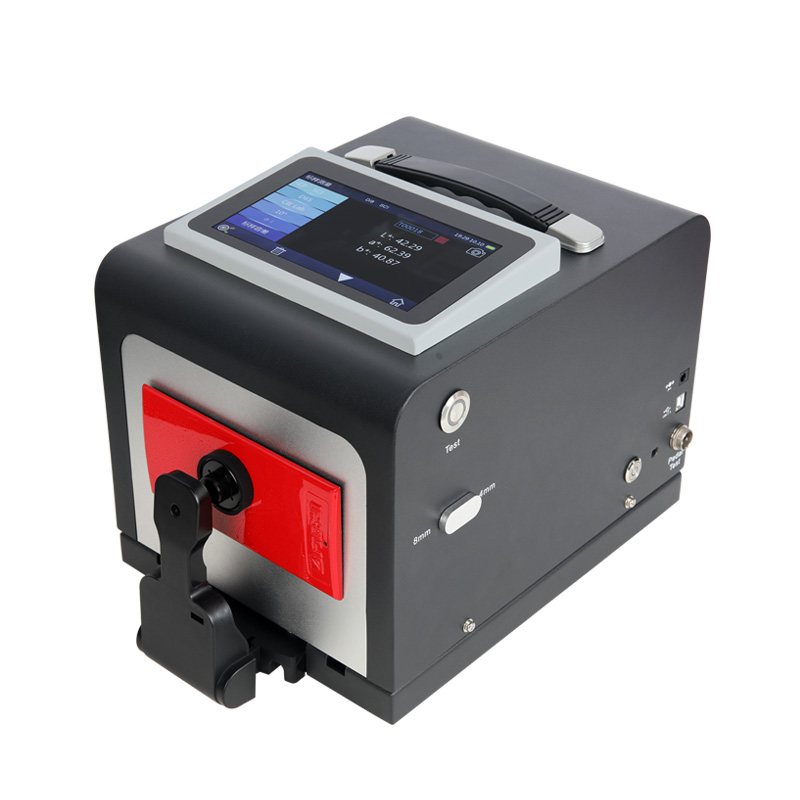

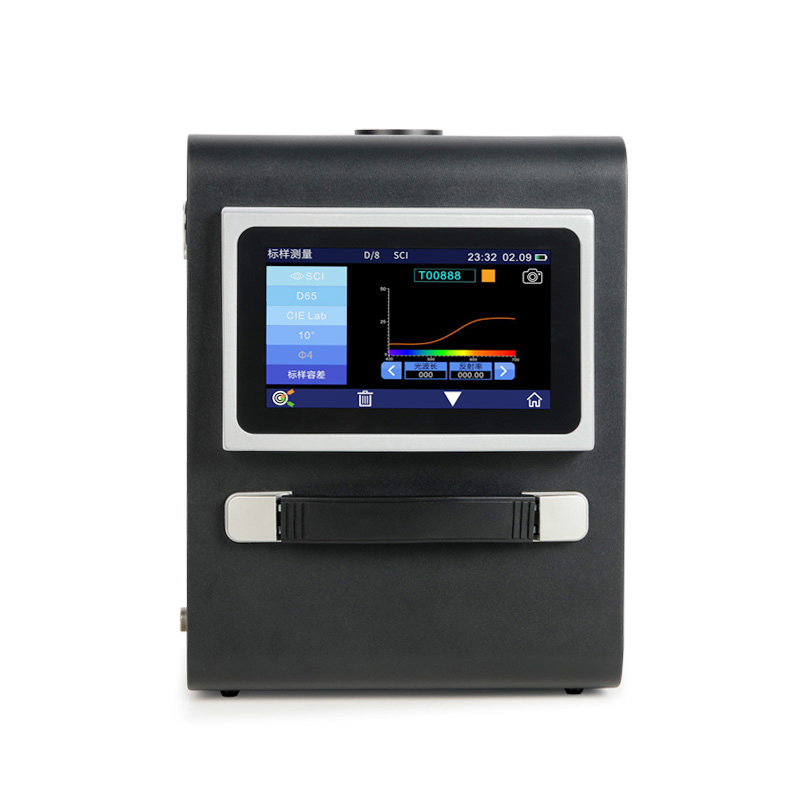

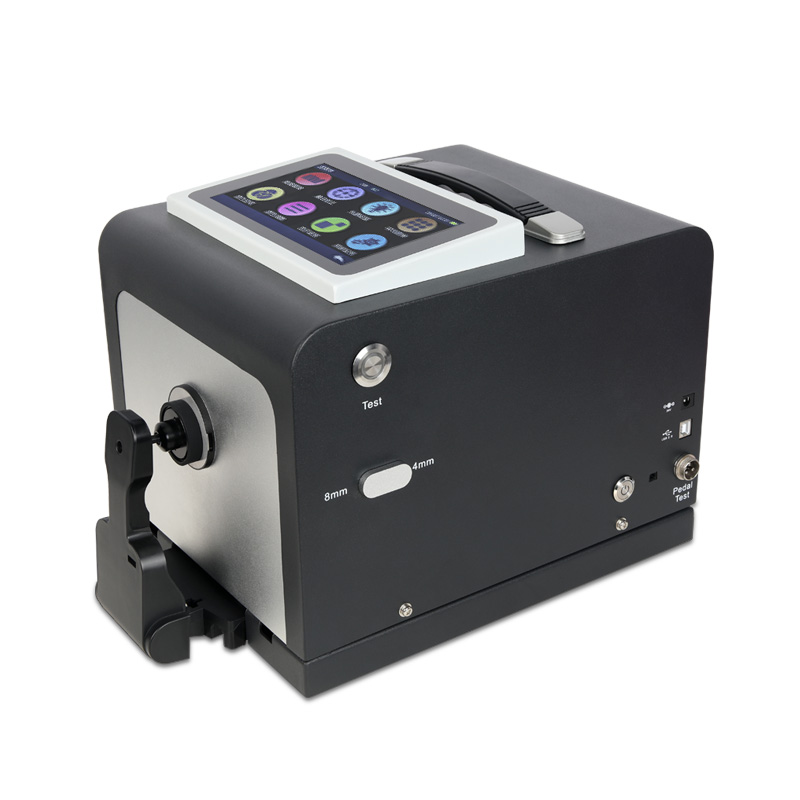

TS8210 Portable Desktop Spectrophotometer

The portable desktop spectrophotometer TS8210 is a spectrophotometer developed by 3NH with independent core spectroscopic technology. It adopts built-in silicon photodiode array (40 groups in double rows) sensors and imported white board, and gives consideration to the speed of measurement and the convenience of operation. The rotating and pressing structure makes the test more convenient. TS8210 portable desktop spectrophotometer color measurement instrument features with repeatability Δ E * ab easily control within 0.025, and inner errors Δ E * ab control within 0.2. This accuracy measurement makes it good used in the lab color accurate analysis and transfer.



Application of TS8210 portable Desktop spectrophotometer:



TS8210 portable desktop spectrophotometer color measurement instrument equipped with cutomzied single aperture Φ4mm or Φ8mm, good for horizontal or vertical measurement, wider adaptability, suitable for precise color measurement and quality control in textile and garment printing and dyeing, plastic electronics, ceramics and other industries.



Technical Advantages:

1.Adopt international common use d/8 SCI/SCE Synthesis technology

TS8210 spectrocolorimeter adopts D/8(diffused illumination, 8-degree viewing angle) which is widely applicable in the world, and SCI/SCE (specular component included/specular component excluded) Synthesis technology, supporting SCI+SCE simultaneous rapid measurement, and the test time is about 3.2 seconds.

2.Silicon photodiode array sensor (40 groups with double rows)

Double 40 array sensor with larger area, high light saturation, high sensitivity of low light and wide spectral response range ensure the measurement speed, accuracy, stability and consistency of the instrument.

3.A variety of color space, a variety of observation light sources

TS8210 portable desktop spectrophotometer color measurement instrument provides CIE LAB, XYZ, Yxy, LCh, CIE LUV, s - RGB, HunterLab, βxy, DIN Lab99, Munsell (C / 2) color space, and D65, A, C, D50, D55, D75, F1, F2 (CWF), F3, F4 and F5, F6 and F7 (DLF), F8, F9, F10 (TPL5), and F11 (TL84), F12 (TL83 / U30) light sources, which can meet the special measurement requirements under different measurement conditions.

4.Adopt combination full spectrum LED light source and UV light source Each

Full band balanced LED light source ensures sufficient spectral distribution in visible light range, avoids the spectral loss of white LED in specific band, ensures the accuracy of instrument measurement speed and measurement results, and professional UV light source ensures more reliable UV testing.

5.Camera locating can clearly observe the measured area

TS8210 spectrophotometer has a built-in camera for positioning, which can accurately determine whether the measured part of the object is the center of the target through real-time viewing by the camera, thus improving the measurement efficiency and accuracy.

6.Calirbation Certificate

TS8210 spectrophotometer has been verified and tested. After leaving the factory, each instrument is verified according to the measurement standards of authoritative verification departments, and the measurement data are traceable to the National Metrotechnical Institute to ensure the authority of the instrument test data.

7.Industrial-grade HD touch screen, easy to use user interface

Using 7-inch industrial grade hd touch screen, smooth operation, the user interface is easy to use and it makes the operation to become comfortable and convenient.

8.Color management software

SQCX quality management software with TS8210 spectrophotometer is suitable for quality monitoring and color data management in various industries. Data the user's color management, compare color differences, generate test reports, provide multiple color space measurement data, and customize the customer's color management.

9.Optional Accessory

Micro printer, foot switch, rotating bracket can be freely selected according to the needs.

Technical Specification

Model

TS8210

Optical Geometry

D/8(diffused illumination, 8-degree viewing angle)

SCI (specular component included)/SCE (specular component excluded) ; excluded UV measurement

Comply to CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7

Characteristic

Customized aperture,good for horizontal or vertical measurement, wider adaptability;



Suitable for precise color measurement and quality control in textile and garment printing and dyeing, plastic electronics, ceramics and other industries;

Integrating Sphere Size

Φ40mm

Light Source

Combined full spectrum LED light source

Spectrophotometric Mode

Flat Grating

Sensors

Silicon photodiode array (double row 40 groups)

Wavelength Range

400~700nm

Wavelength Interval

10nm

Semiband Width

10nm

Measured Reflectance Range

0~200%

Measuring Aperture

Customized single aperture:MAV:Φ8mm/Φ10mm;SAV:Φ4mm/Φ5mm

Specular Component

SCI/SCE

Color Space

CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,βxy,Munsell(C/2)

Color Difference Formula

ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00

Other Colorimetric Index

WI(ASTM E313,CIE/ISO,AATCC,Hunter),

YI(ASTM D1925,ASTM 313),

Staining Fastness, Color Fastness, Color Strength, Opacity

8° Glossiness,555 tone classification

Observer Angle

2°/10°

Illuminant

D65,A,C,D50,F2(CWF),F7(DLF),F10(TPL5),F11(TL84),F12(TL83/U30)

Displayed Data

Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset

Measuring Time

About 1.5s (Measure SCI & SCE about 3.2s)

Repeatability

Chromaticity value: MAV/SCI, within ΔE*ab 0.025 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)

Inter-instrument Error

MAV/SCI, Within ΔE*ab 0.2
(Average for 12 BCRA Series II color tiles)

Measurement Mode

Single Measurement, Average Measurement(2-99times)

Locating Method

Camera Locating

Dimension

L*W*H=370X240X260mm

Weight

About 7.8kg

Battery

AC 24V, 3A Power adapter power supply

Illuminant Life Span

5 years, more than 3 million times measurements

Display

7-inch TFT color LCD, Capacitive Touch Screen

Data Port

USB, trigger switch interface

Data Storage

Standard 1000 Pcs, Sample 20000 Pcs

Language

Simplified Chinese, English, Traditional Chinese

Operating Environment

0~40℃, 0~85%RH (no condensing), Altitude < 2000m

Storage Environment

 -20~50℃, 0~85%RH (no condensing)

Standard Accessory

Power Adapter, USB Cable, User Guide, PC Software(Download from office website), White and Black Calibration Cavity, Protective Cover, Aperture (Optional Aperture)

Optional Accessory

Micro Printer, Foot Switch, Rotating Bracket

Notes

Technical parameters are only for reference, subject to the actual sale of the product
