Light Booth

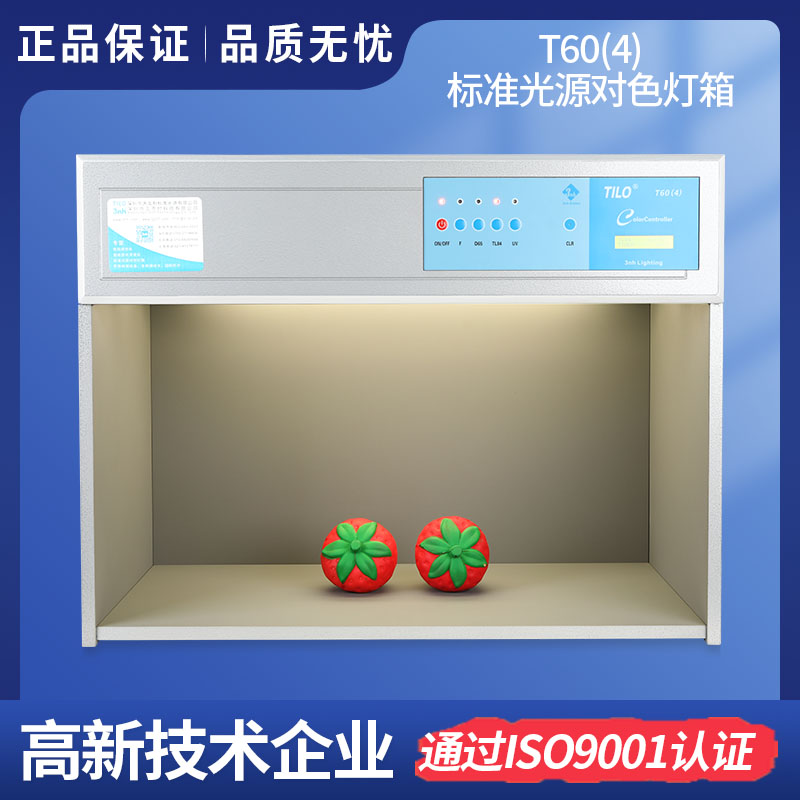

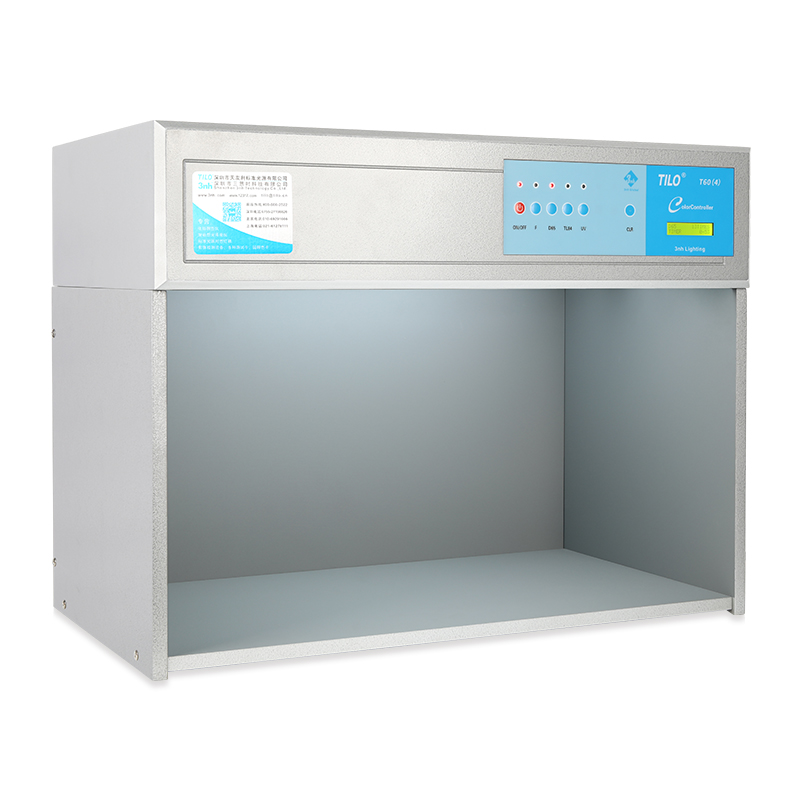

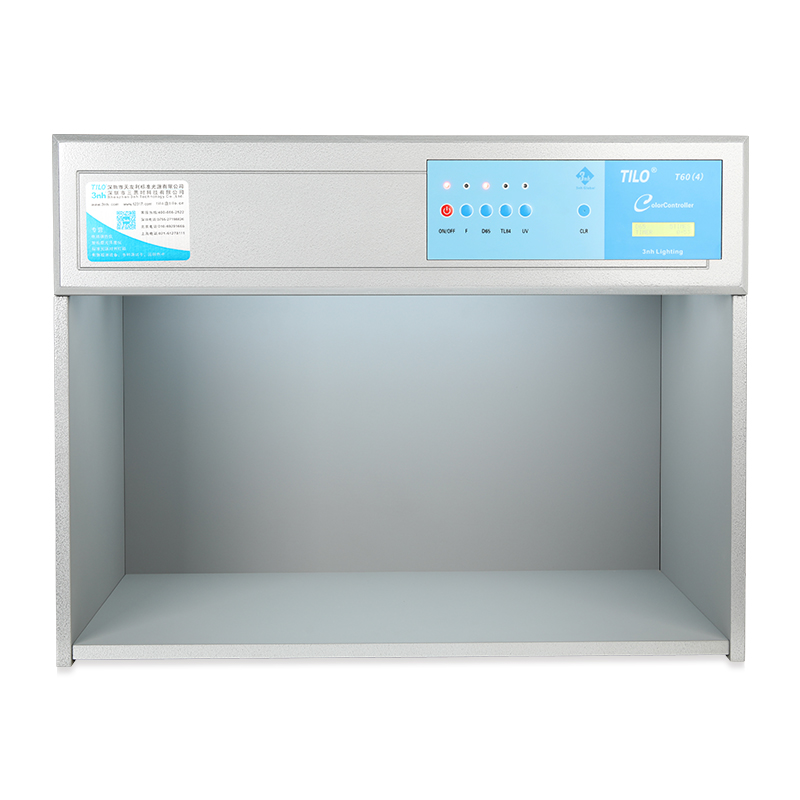

T60(4) Color Light Booth

Brand: TILO
Made in China
Configuration: D65 TL84 F UV four light sources
Weight: 23Kg
Dimensions(WxDxH): 710x405x570 mm


T60(4) color light booth is equipped with 4 light sources. The consistency of the light sources in all Tilo Color Matching Cabinet gives excellent viewing conditions for reliable colour critical decisions under consistent lighting.

T60(4) color light booth can be applied to the industries that need to perform color difference testing as follows: as the premiere designer and manufacturer of color matching box instrument products for the Graphic arts, Photographic, Textile, Dyeing, Packaging, Printing, Leather, Inks, Knitwear, Plastic, Automotive and Ceramics industries.

Features:


1. TILO Color light booth render color more accurately. With 4 different light sources(D65, TL84, F, UV), which can detect the metamerism.
2. Meets or exceeds major international standards for visual color evaluation including: ASTM D1729, ISO3664, DIN, ANSI and BSI.
3. Easy to operate by using individual switches for each light source.
4. Elapsed time meter for tracking optimal lamp replacement.
5. Automatically alternating among light sources.
6. No warm-up time or flickering which insures quick and reliable color judgment.
7. Economic power consumption and low heat generation for high light efficiency.
8. The dimension can be made by customized.



Specifications:



Order No. Name Model D65 TL84 F UV Voltage
10106 Standard light source booth T60(4) four light source(220V) 2 pcs 2 pcs 4 pcs 1 pcs 220V/50Hz
10806 Standard light source booth T60(4) four light source(115V) 2 pcs 2 pcs 4 pcs 1 pcs 115V/60Hz

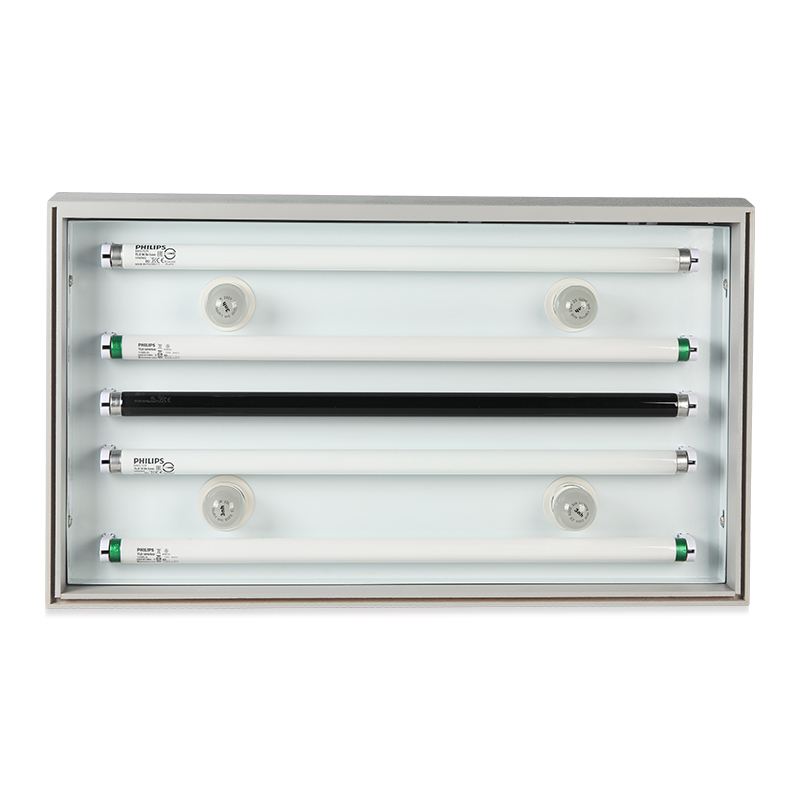

Light Sources:


Light Source Color viewing booths application Color temperature(k) Power(W)
D65 International standard Artificial Daylight 6500 18
TL84 Applied to stores in Europe, Japan and China 4000 18
CWF (Cool White Fluorescent) American Standard 4150 18
F/A "Sun-setting Light Yellow" incandescent light source (imitation of sunset) 2700 40
UV Viewing under ultraviolet light to detect and evaluate optical brighteners or fluorescent pigments Wave length:365nm 20
U30 Warm White Fluorescent American Standard 3000 18
