Light Booth

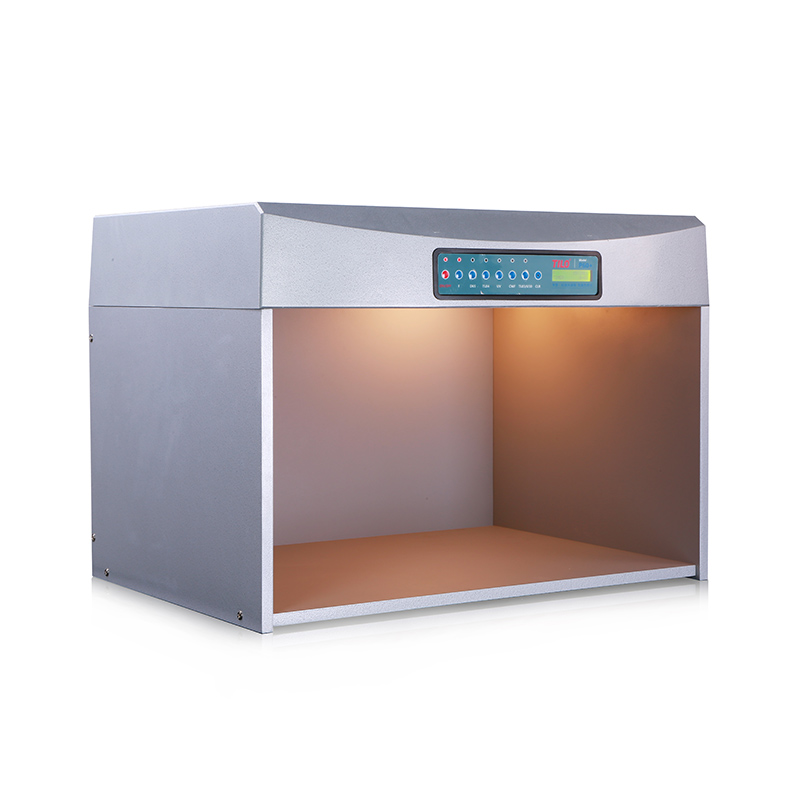

P60+ Color Light Booth (Updated version)

Brand: TILO
Made in China
Configuration: D65, TL84, F, UV,CWF,TL83 six light sources
Weight: 25Kg
Dimensions(WxDxH): 695x552x502 mm

P60+ According to users’ needs, various standard light sources recognized by the International Commission on Illumination (CIE) can be provided, meeting all major visual evaluation standards, including AS, ASTM, BSI, DIN, and ISO international standards, such as ISO 3664, ISO 3668, ISO 13076, ISO 23603, AATCC EP9, ASTM D1729, DIN 6173, CIE S025/E, BS 950 Pt.2, etc.


P60+ color light booth is our updated version, and it is equipped with 6 light sources. The consistency of the light sources in all Tilo Colour Assessment Cabinets gives excellent viewing conditions for reliable colour critical decisions under consistent lighting.

P60+ color light booth can be applied to the industries that need to perform color difference testing as follows: as the premiere designer and manufacturer of color matching instrument products for the Graphic arts, Photographic, Textile, Dyeing, Packaging, Printing, Leather, Inks, Knitwear, Plastic, Automotive and Ceramics industries.



Features:


1. TILO Color light booth render color more accurately. With 6 different light sources(D65, TL84, CWF, TL83/U30, F, UV), which can detect the metamerism.
2. Meets or exceeds major international standards for visual color evaluation including: ASTM D1729, ISO3664, DIN, ANSI and BSI.
3. Easy to operate by using individual switches for each light source.
4. Elapsed time meter for tracking optimal lamp replacement.
5. Automatically alternate among light sources.
6. No warm-up time or flickering which insures quick and reliable color judgment.
7. Economic power consumption and low heat generation for high light efficiency.
8. The dimension can be made by customized.






Specifications:


Order No. Name Model D65 TL84 F UV CWF TL83 Voltage
10107  Standard light source booth P60+ six light source(220V) 2pcs 2pcs 4pcs 1pcs 2pcs 2pcs 220V/50Hz
10807 Standard light source booth P60+ six light source(115V) 2pcs 2pcs 4pcs 1pcs 2pcs 2pcs 115V/60Hz


Light Sources:


Light Source Color viewing booths application Color temperature(k) Power(W)
D65 International Standard Artificial Daylight 6500 18
TL84 Applied to stores in Europe, Japan and China 4000 18
CWF (Cool White Fluorescent)American Standard 4150 18
F/A "Sun-setting Light Yellow" incandescent light source (imitation of sunset) 2700 40
UV Viewing under ultraviolet light to detect and evaluate optical brighteners or fluorescent pigments Wave length:365nm 20
TL83 Warm White Fluorescent American Standard 3000 18
