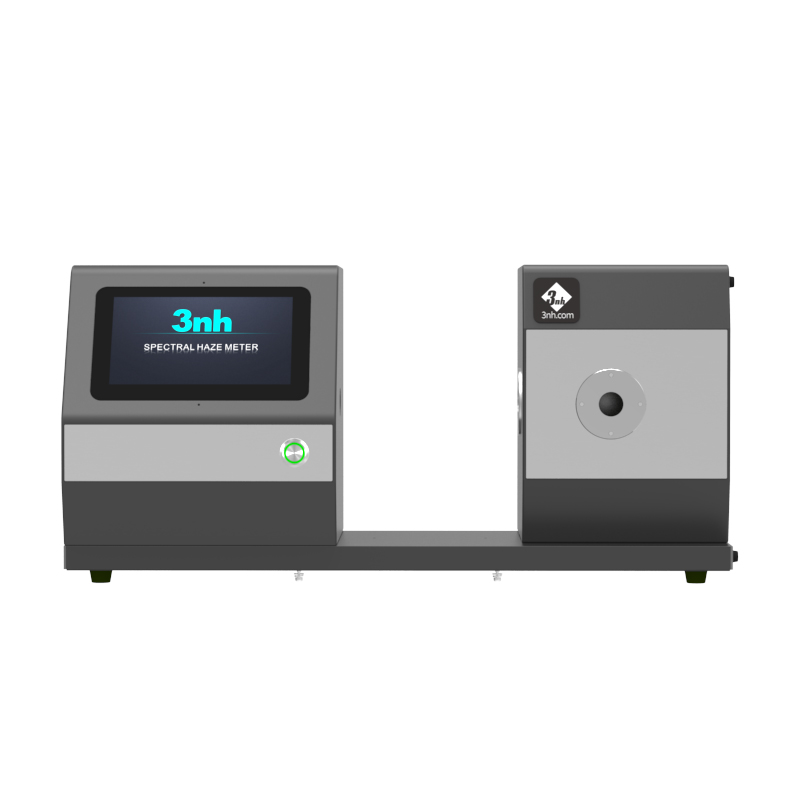

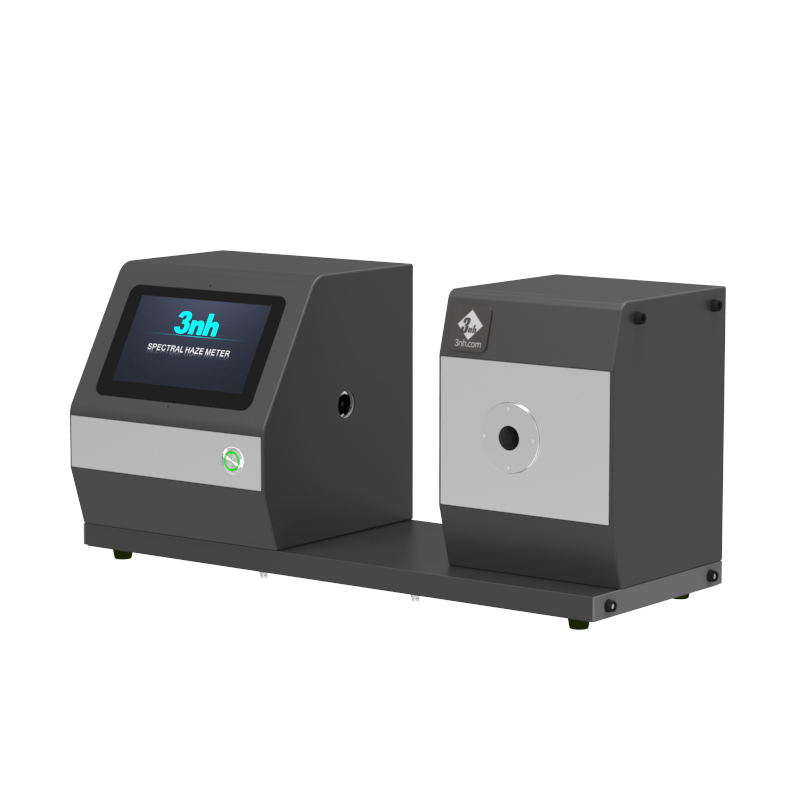

3nh KS1210 haze meter is professionally designed to measure haze, total transmittance, and clarity of materials such as glass, plastics, films, and screen. It supports both ASTM D1003 uncompensated method and ISO 13468 compensated method measurement modes, meeting the testing needs of different standard systems in one device.

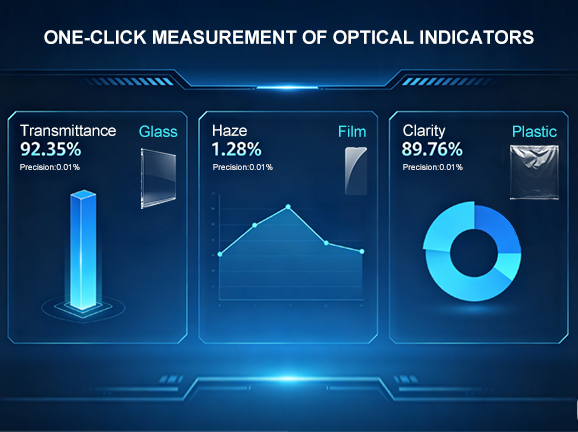

A single measurement can simultaneously obtain three indicators: full transmittance, haze, and clarity, with both transmittance and haze resolution reaching 0.01 units.

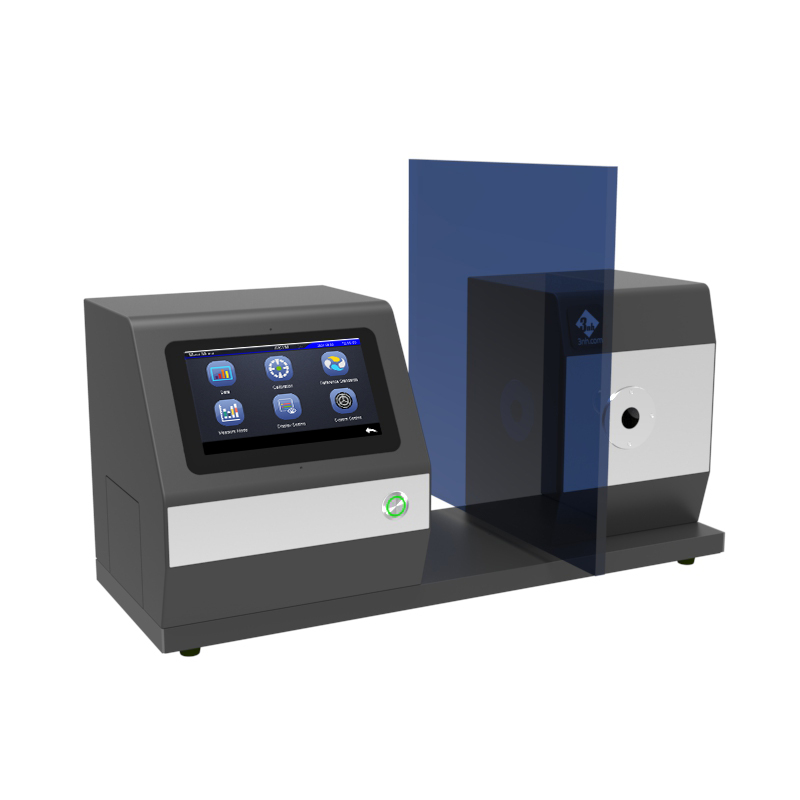

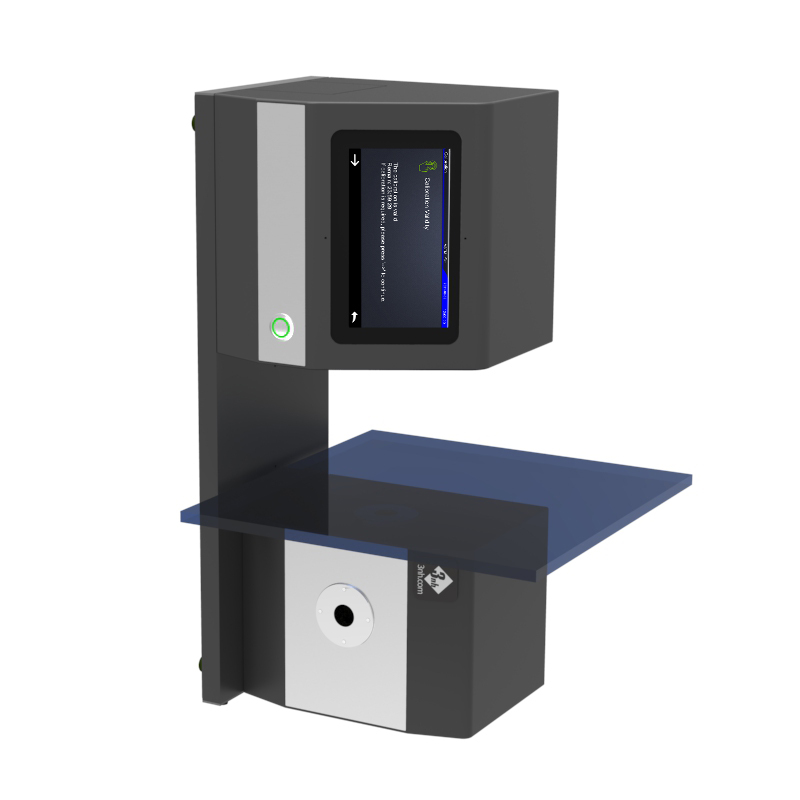

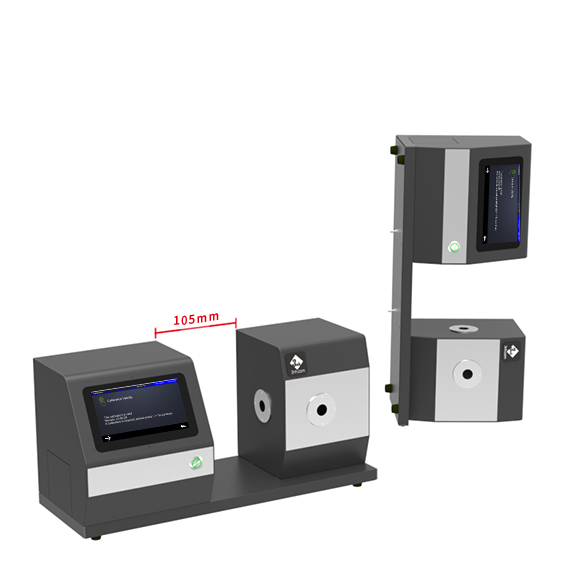

The open measurement structure supports both vertical and horizontal placement, and the maximum sample thickness can reach 105mm. It can directly measure large-size plates, film rolls and liquid cuvettes without destructive cutting.

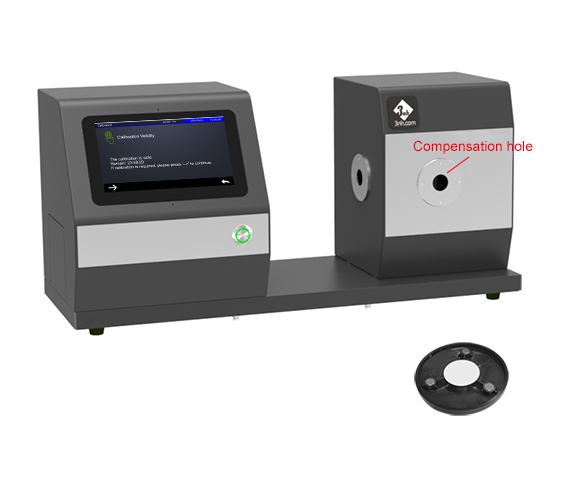

It has built-in ASTM D1003 uncompensated method and ISO 13468 compensated method, which users can switch as needed to meet the testing requirements of different industry standards.

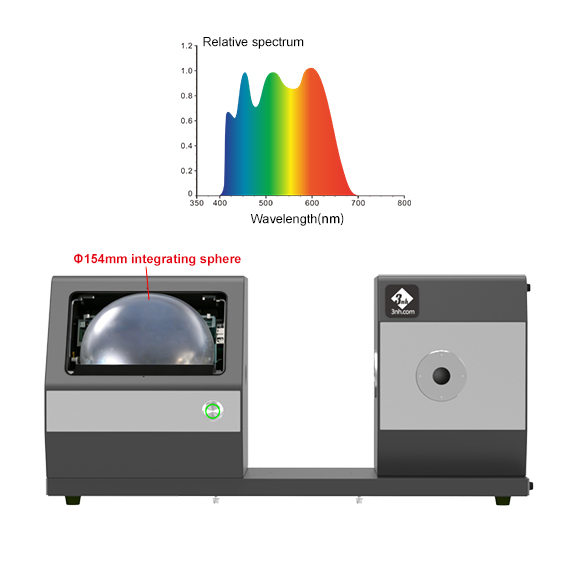

Employing a 400~700nm combined LED light source, a 154mm high-precision integrating sphere, and nano-integrated spectroscopic devices, coupled with a dual-row 18-group silicon photodiode array sensor, it achieves more balanced optical sampling and more sensitive signal acquisition, ensuring detection accuracy and long-term stability.
Fully compliant with international and domestic standards such as ASTM D1003/1044, ISO 13468/14782, GB/T 2410, and JIS K7105/K7361/K7136.

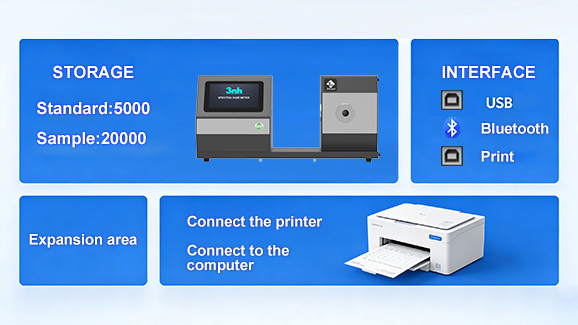

Supports storage of 5,000 standard samples and 20,000 test samples. Equipped with USB, Bluetooth, and a serial printer port, it can connect to an external printer or PC-based quality control software for easier traceability and analysis.

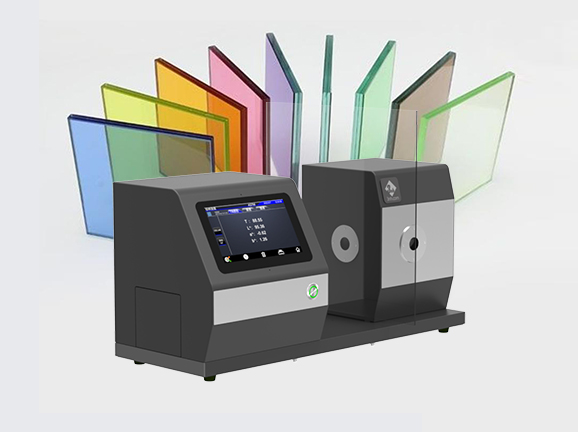

Glass Processing: KS1210 is widely used for testing the haze and transmittance of transparent glass products such as architectural glass, automotive glass, and photovoltaic glass. Its high-precision measurement capabilities ensure that the optical properties of the glass meet industry standards, helping companies control product quality and enhance product competitiveness.

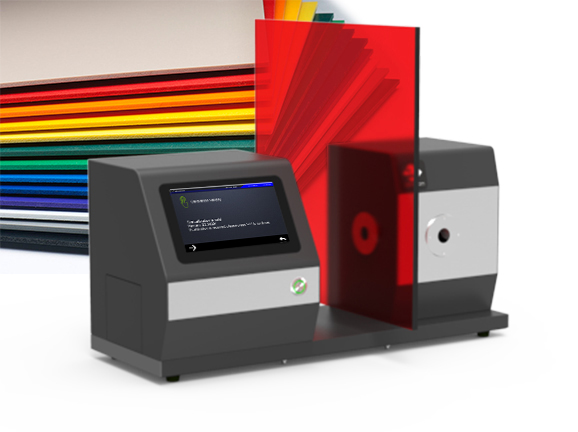

Plastic Processing: Suitable for optical performance testing of various transparent plastic sheets, plates, and products. Whether it is PC, PMMA, PET, or other transparent plastic materials, the KS1210 can provide accurate haze and transmittance data, supporting both R&D and quality control needs.

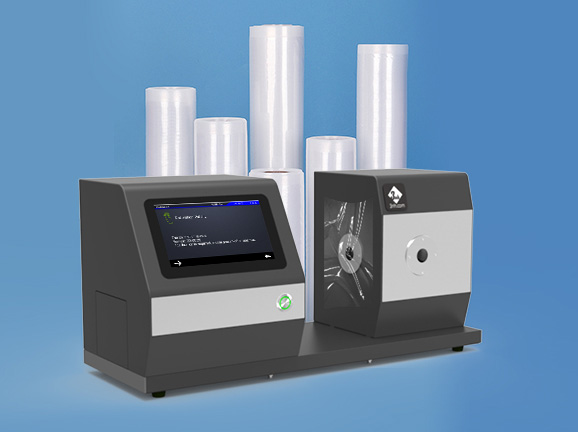

Film Manufacturing: For products such as optoelectronic films, packaging films, and functional films, the KS1210 provides a fast and accurate haze measurement solution. Its 1.5-second rapid measurement, combined with large-capacity storage, meets the high-frequency quality inspection needs of film production lines.

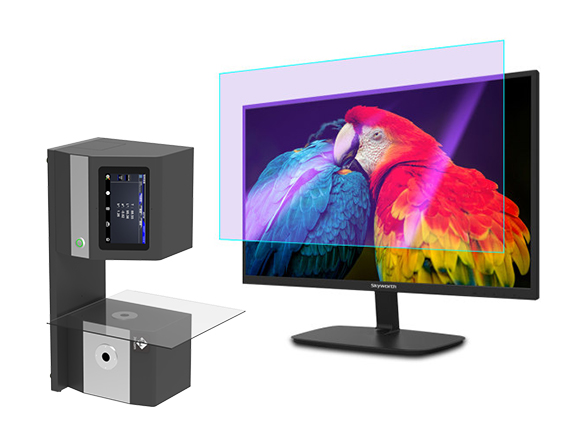

Display Screen Processing: In the manufacturing of displays such as touch screens, LCD modules, and OLED panels, the KS1210 is used to test the optical performance of key materials such as transparent conductive films, polarizers, and cover glass to ensure that the display effect meets design standards.

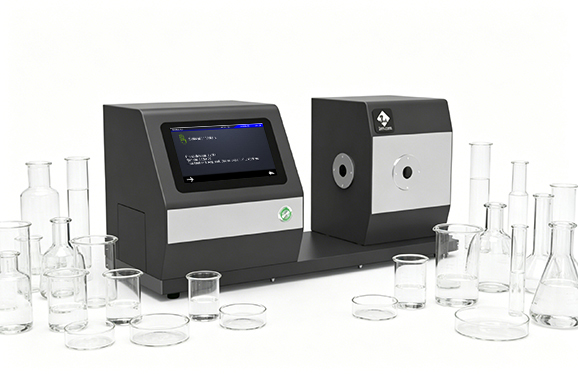

Packaging Industry: Haze detection is used for transparent or semi-transparent packaging materials (such as plastic bottles, composite films, and stretch films) used in food, pharmaceutical, and cosmetic packaging. This ensures that the packaging materials possess good transparency and appearance quality, meeting both food safety and consumer experience requirements.
Product Model | KS1210 Haze Meter |
Illumination Method |
Transmittance 0/D (Parallel light illumination, diffuse viewing); |
Characteristics |
The instrument can easily perform ASTM D1003 uncompensated method and ISO 13468 compensated method tests for total transmittance and haze. |
Integrating Sphere Size | 154mm |
Light Source | 400~700nm combined LED light |
Spectrophotometric Method | Nanoscale integrated spectral devices |
Sensor | Silicon photodiode array (dual-row, 18 groups) |
Measurement Wavelength Range | 400~700nm |
Wavelength Interval | 10nm |
Half Bandwidth | 10nm |
Measurement Aperture | 20mm/15mm/8mm (Select a single aperture) |
Sample Size | Thickness less than 105mm |
Color Space | / |
Color Difference Formula | / |
Other Chromaticity Indicators | Haze (ASTM D1003/1044, ISO 13468), Transmittance T (ISO), Transmittance T (ASTM), Clarity |
Observer Angle | / |
Observation Light Source | / |
Display | Pass/Fail results |
Measurement Time | Approx. 1.5s |
Haze Resolution | 0.01 unit |
Haze Repeatability | 20mm aperture, within 0.03 (After preheating and calibration of the instrument, standard deviation values of standard haze tablets with a test haze of about 30 for 30 times were taken at intervals of 5s.) |
Transmittance Measurement Range | 0~100% |
Transmittance Resolution | 0.01 unit |
Transmittance Accuracy | Better than ±1% |
Transmittance Repeatability | 20mm aperture, within 0.03 (After preheating and calibration of the instrument, standard deviation values of standard haze tablets with a test haze of about 30 for 30 times were taken at intervals of 5s.) |
Color Difference Repeatability | / |
Platinum-Cobalt Chromaticity Resolution | / |
Platinum-Cobalt Chromaticity Accuracy | / |
Platinum-Cobalt Chromaticity Range | / |
Turbidity Range | / |
Dimensions | L x W x H = 487 x 260 x 298mm |
Weight | Approx. 8.0kg |
Power Supply | DC 24V, 3A power adapter |
Light Source Lifespan | 5 years, more than 3 million times measurements |
Display | 7-inch TFT color LCD, Capacitive Touch Screen |
Interface | USB, Print serial port, Bluetooth |
Storage | Standard 5000pcs, Sample 20000pcs |
Language | Simplified Chinese, Traditional Chinese, English |
Operating Environment | 0~40℃ (32~104℉), 0~85%RH |
Storage Environment | -20~50℃ (-4~122℉), 0~85%RH |
Standard Accessories | Power Adapter, User Guide, Quality Management Software (download from the official website), USB cable, 0% calibration box, measuring aperture |
Optional Accessories | Micro-printer, Test fixture, standard haze sheet, foot switch |
Note: | Subject to change without notice |
