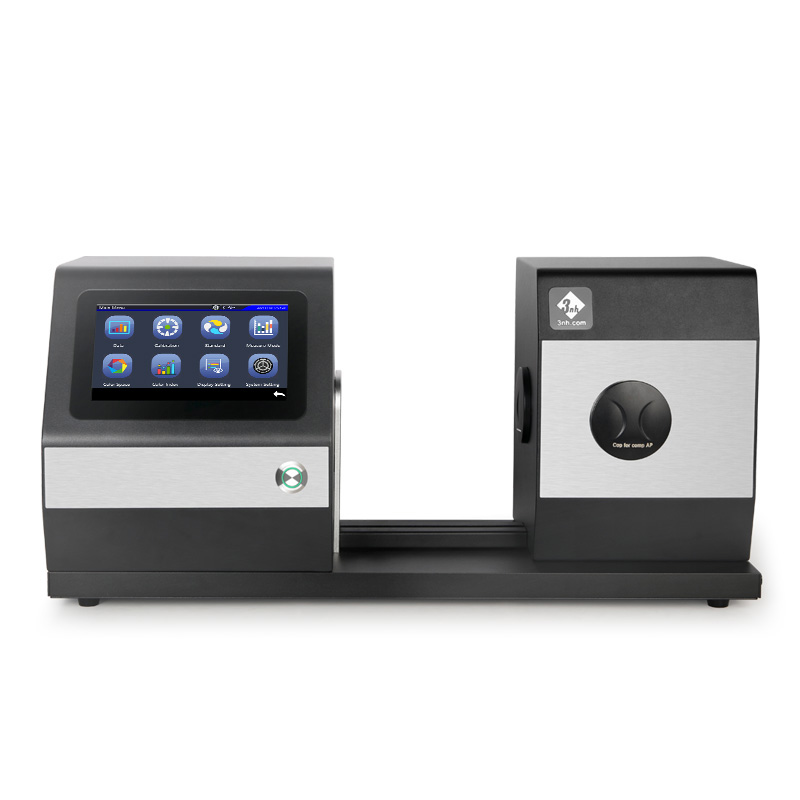

The 3nh KS1500 color haze meter accurately measures multiple parameters of transparent/semi-transparent materials, including haze, transmittance, color difference, clarity, turbidity, platinum-cobalt chromaticity, yellowness, and whiteness, and displays a spectral graph. Its open measurement area supports horizontal or vertical testing, accommodating liquids and large samples (thickness < 105 mm). Multiple measurement apertures (20/15/8 mm) are available to meet the needs of samples of different sizes. Built-in quality management software supports data export and report printing, helping laboratories and production lines achieve precise quality control.

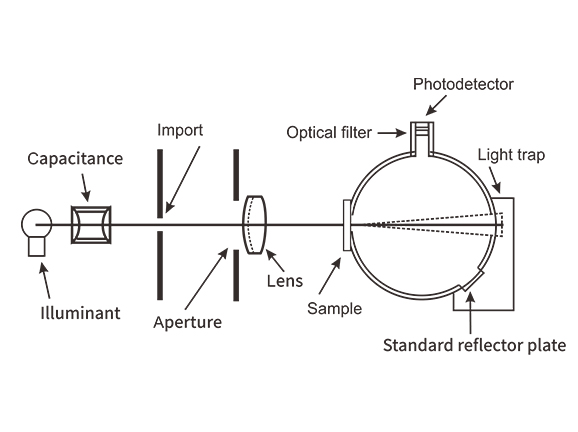

Adopting the O/D optical structure (parallel light illumination, diffuse reflection reception), combined with nano-integrated spectral devices and silicon photodiode array (dual-row, 18 groups), wavelength range 400-700 nm, wavelength spacing 10 nm, it accurately captures the transmittance curve of transmission samples and precisely outputs various chromaticity data of transmission samples.

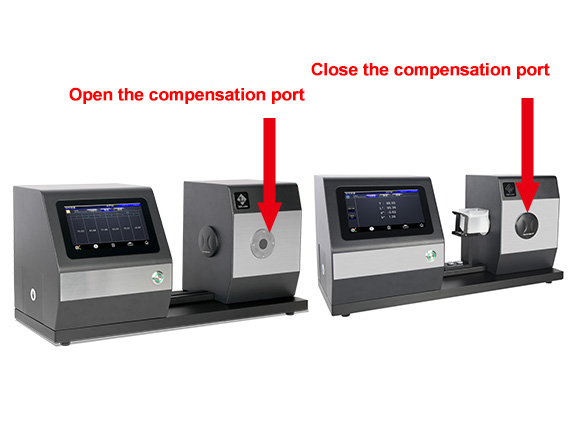

Conforms to international and domestic standards such as ASTM D1003/1044, ISO 13468, ISO 14782, and GB/T 2410. The instrument can easily implement ASTM D1003 non-compensation method and ISO 13468 compensation method, supporting full transmittance, haze testing, and clarity testing, meeting the testing needs of different materials and application scenarios, and improving testing flexibility and data comparability.

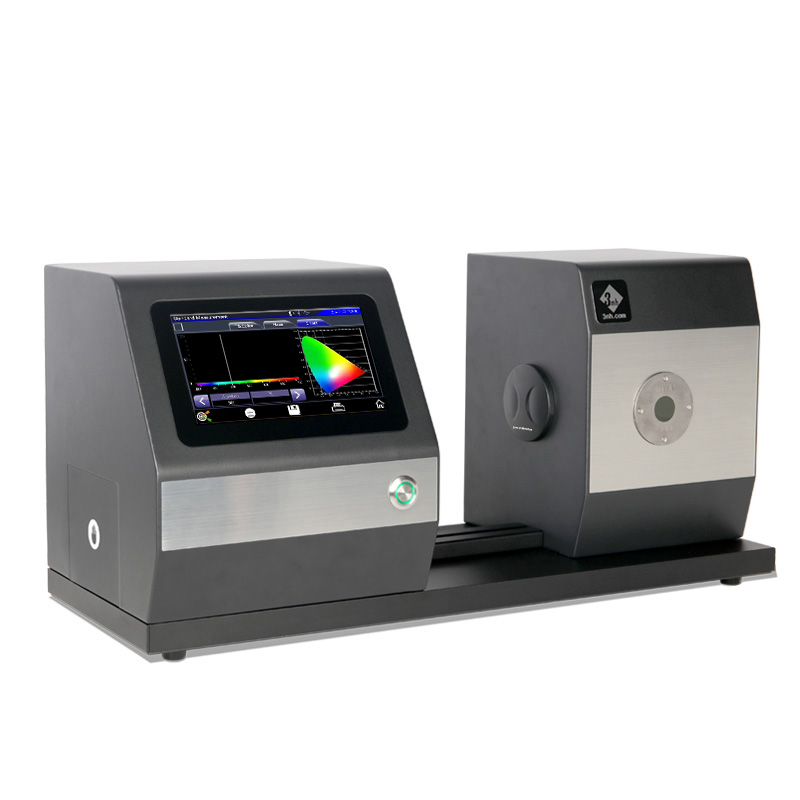

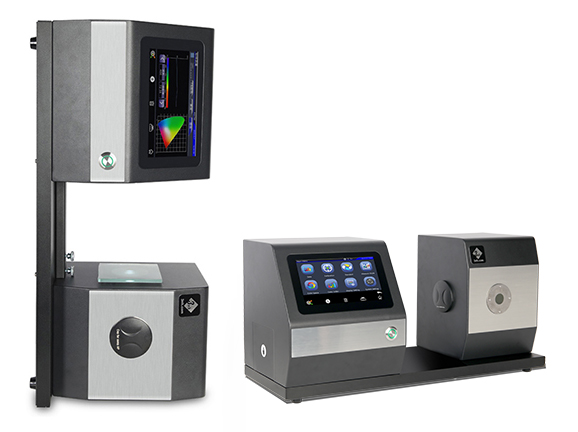

High hardware configuration, open measurement area, horizontal structure allows vertical and horizontal testing, convenient for placing and operating large samples. Supports sample testing with thickness less than 105 mm. Compatible with Φ20mm/Φ15mm/Φ8mm multiple measurement apertures, flexibly adapting to samples of different sizes and shapes.

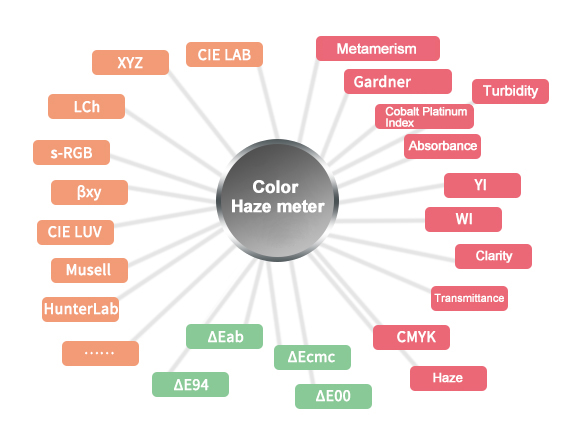

Supports multiple color spaces including CIE LAB, XYZ, Yxy, LCh, s-RGB, βxy, CIE LUV, Musell, and HunterLab, and provides multiple color difference formulas such as ΔE*ab, ΔE*94, ΔE*cmc, and ΔE*00. Simultaneously outputs haze, transmittance T (ISO/ASTM), clarity, WI, YI, absorbance, cobalt-platinum index, Gardner index, CMYK, metamerism index MI, turbidity, and other indicators, comprehensively evaluating the optical characteristics of samples.

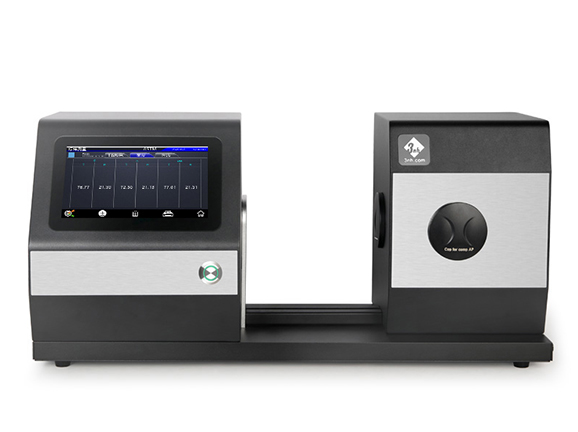

Under Φ20mm aperture, haze repeatability is less than 0.03 (after instrument warm-up and calibration, testing a standard haze plate with haze of approximately 30 at 5-second intervals for 30 measurements, standard deviation), transmittance repeatability is also better than 0.03, and color difference repeatability is less than 0.03, ensuring data stability and reliability in long-term use.

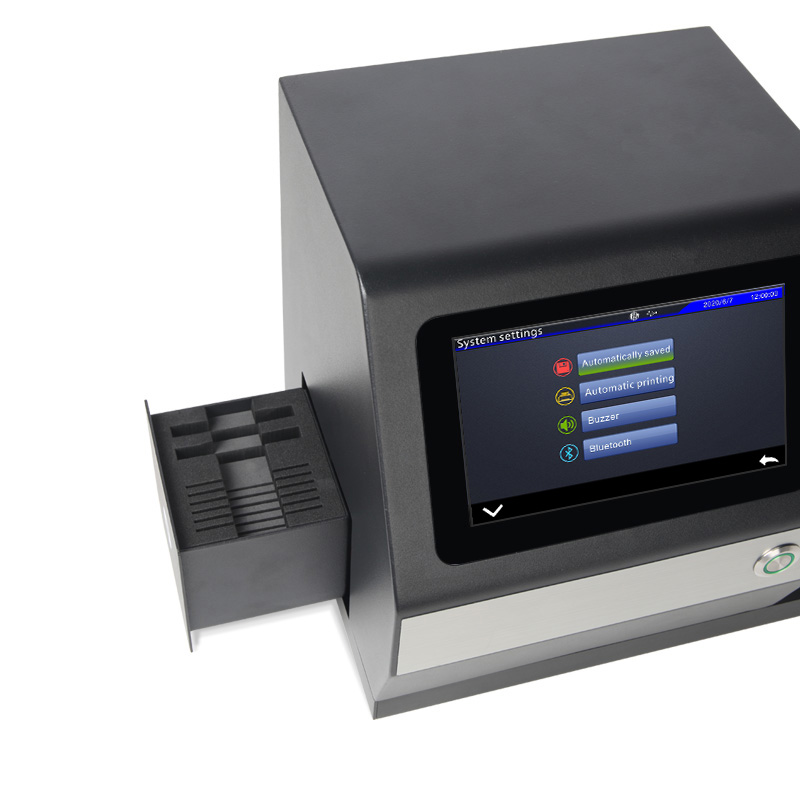

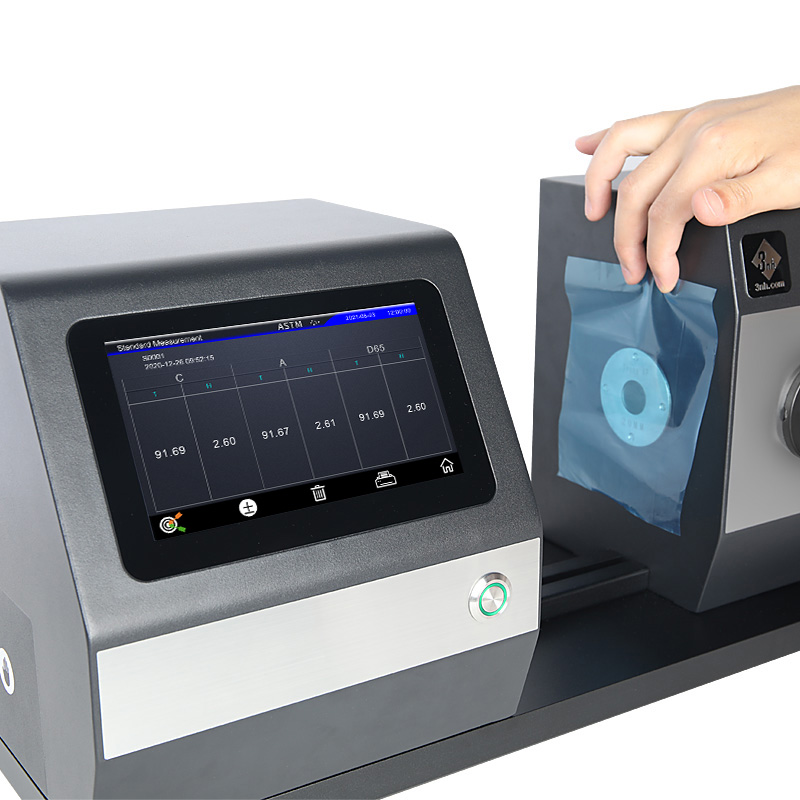

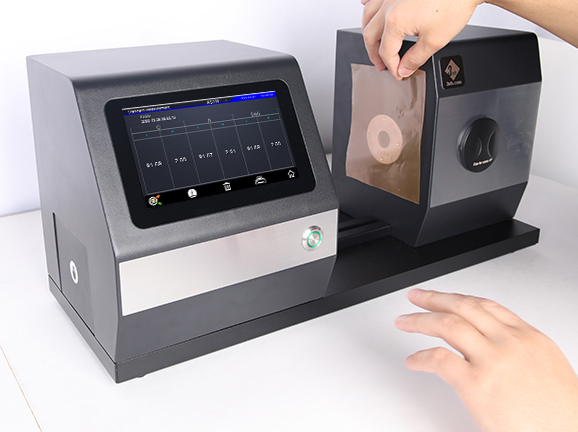

Equipped with a 7-inch TFT true-color capacitive touchscreen, supporting spectral graph, sample color values, color difference values/graph, chromaticity diagram, color simulation, and PASS/FAIL result display. Large storage capacity, can store 5000 standard samples and 20000 test samples, supports USB, print serial port, Bluetooth, and other interfaces, facilitating data export and system integration.
The KS1500 color haze meter is widely used in glass processing, plastics processing, film manufacturing, display screen processing, packaging industry, liquid pharmaceutical analysis, and other fields. It is suitable for testing optical properties such as transmittance, haze, chromaticity, and clarity of transparent and semi-transparent materials, making it an ideal choice for laboratory quality control and online quality assurance.
International Standards: ASTM D1003/1044, ISO 13468, ISO 14782, CIE 15.2, ASTM E308, JIS K7105, JIS K7361, JIS K7136
Chinese Standards: GB/T 2410, JJF 1303-2011, GB/T 3978
Product Model | KS1500 Color Haze Meter (Spectroscopic/Horizontal/Compensation Port) |
Illumination Method |
Transmission: 0/D (parallel light illumination, diffuse reflection reception); |
Features |
The instrument can easily implement ASTM D1003 non-compensation method and ISO 13468 compensation method, full transmittance and haze testing, and clarity testing. |
Integrating Sphere Size | Φ154mm |
Light Source | 400~700nm combined LED light source |
Spectrophotometric Method | Nanoscale integrated spectral devices |
Sensor | Silicon photodiode array (dual-row, 18 groups) |
Measurement Wavelength Range | 400~700nm |
Wavelength Spacing | 10nm |
Half Bandwidth | 10nm |
Transmittance Measurement Range | 0~100% |
Measurement Aperture | Φ20mm/Φ15mm/Φ8mm (Select a single aperture) |
Sample Size | Thickness less than 105mm |
Color Spaces | CIE LAB,XYZ,Yxy,LCh,s-RGB,βxy,CIE LUV,Musell,HunterLab |
Color Difference Formula | ΔE*ab,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00,ΔE*uv,ΔE*CH |
Other Colorimetric Indices | Haze (ASTM D1003/1044, ISO 13468), Transmittance T (ISO), Transmittance T (ASTM), Clarity, WI (ASTM E313, CIE/ISO, AATCC, Hunter, Taube, Berger, Stensby), YI (ASTM D1925, ASTM 313), Absorbance, Pt-Co Index, Gardner Index, CMYK, Tint (ASTM E313-00), Metamerism Index (MI), Turbidity |
Observer Angle | 2°/10° |
Observation Light Source | D65,A,C,D50,D55,D75,F1,F2,F3,F4，F5，F6,F7,F8,F9，F10,F11,F12,CWF,DLF,TL83,TL84,TPL5,U30,NBF |
Display | Spectrum, sample color values, color difference values/graph, chromaticity diagram, color simulation, PASS/FAIL result |
Measurement Time | About 1.5s |
Haze Resolution | 0.01 unit |
Haze Repeatability | Φ20mm aperture, within 0.03 (after instrument warm-up and calibration, testing a standard haze plate with haze of approximately 30 at 5-second intervals for 30 measurements, standard deviation) |
Transmittance Measurement Range | 0~100% |
Transmittance Resolution | 0.01 unit |
Transmittance Accuracy | Better than ±1% |
Transmittance Repeatability | Φ20mm aperture, within 0.03 (after instrument warm-up and calibration, testing a standard haze plate with haze of approximately 30 at 5-second intervals for 30 measurements, standard deviation) |
Color Difference Repeatability | Φ20mm aperture, within 0.03 (after instrument warm-up and calibration, testing white glass 30 times) |
Pt-Co Chromaticity Resolution | 0.01 |
Pt-Co Chromaticity Accuracy | ≤±(5%H+1), H: standard value |
Pt-Co Chromaticity Range | 0-1000 |
Turbidity Range | 0-1000NTU |
Dimensions | L x W x H = 487 x 260 x 298 mm |
Weight | About 8.0 kg |
Power Supply | DC 24V, 3A power adapter power supply |
Light Source Lifespan | 5 years, more than 3 million measurements |
Display | 7-inch TFT true-color LCD, capacitive touch screen |
Interface | USB, Print serial port, Bluetooth |
Storage | Standard 5000 pcs, Sample 20000 pcs |
Language | Simplified Chinese, Traditional Chinese, English |
Operating Temperature Range | 0~40℃ (32~104°F) |
Storage Temperature Range | -20~50℃ (-4~122°F) |
Standard Accessories | Power adapter, User Guide, Quality Management Software (download from official website), USB cable, 0% calibration box, measurement aperture |
Optional Accessories | Micro-printer, Test fixture, Standard haze sheet, Foot switch |
Note: | Subject to change without notice |
